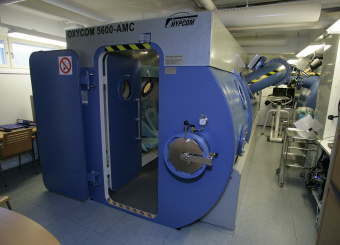

OXYCOM 5600 AMC Hyper/Hypobaric Chamber

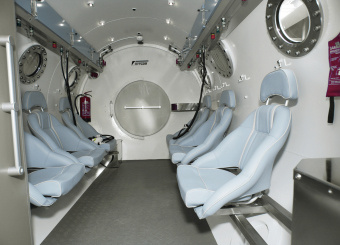

The OXYCOM 5600-AMC is a hypo-/hyperbaric two compartment oxygen therapy chamber. It is designed for six seated persons in the main chamber and two persons in the ante chamber.
Technical data:
Max. working pressure | 2.5bar (3.5ATA) |
Min. vacuum | 0.8 bar (0.2 ATA) |
Inside diameter | 2200 mm |
Total length | 5600 mm |
Window diameter | Ø250 mm |
Total volume | 21m³ |
Certification acc. to European Standard EN 14931: Pressure vessels for human occupancy (PVHO)- Multi-place pressure chamber systems for hyperbaric therapy. | |

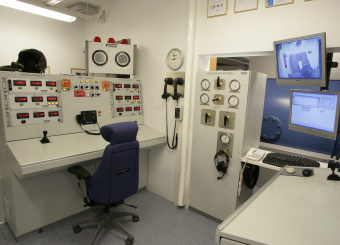

joystick-operated compression and decompression
electric ventilation controls
digital displays for:
pressure
pressure change
oxygen
CO2
temperature
humidity
ventilation
communication unit
mechanical pressure gauges
computer based data collection with display
digital video recorder with display
fire fighting system control unit
treatment gas management valves
