Instrument Test Chamber - OXYCOM 150 Test
The OXYCOM 150 TEST- instrument test chamber is designed to simulate the operating conditions necessary for the accurate testing of underwater equipment used in various military and industrial applications. This apparatus is suitable for testing the watertight integrity, accuracy and overall function of depth gauges, watches, dive computers and underwater photographic equipment, etc.
Max. operating pressure | 15 bar |
Test pressure | 22 bar |
Volume | 1-8 litres |
Operating temperature | +5°C...+30°C |
Material | Stainless steel |
Inside diameter | 125 mm |
Inside height | 134 mm |
Content | Air, Nitrogen, Helium, Water |
Window diameter | 100 mm |

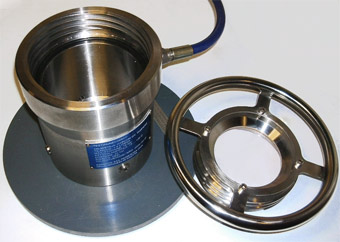

Quick-lock door, 360º turn on | |

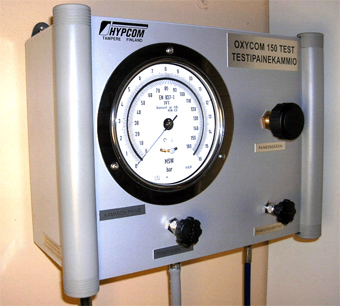

Separate control panel | |
Master Gauge | -0-16bar / 0–160msw -Ø 6“, accuracy 0,25% |
Control valves | |
Two air supply points | -7 bar low pressure -200/300bar supply with pressure reducer |
Manufactured according to pressure equipment directive 97/23/EC | |
Accessories:
Digital pressure display
Electrical feed -through
Vacuum model as option
