Animal research chambers

Hypcom animal reaserch chamber
HYPCOM OXYCOM 250 ARC

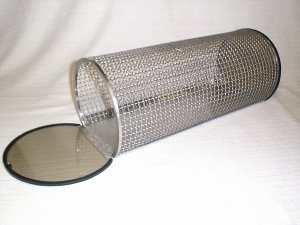

Hypcom animal research chamber cage
The cage for use with HYPCOM OXYCOM 250 ARC

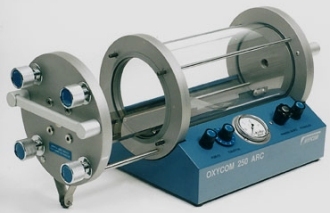

OXYCOM 250 ARC



The OXYCOM 250 ARC is a hyperbaric chamber for animal research. The chamber consists of one compartment that can be pressurized with pure oxygen. The maximum operating pressure is 1.8 bar (18 MSW).

Technical Specification:



Total length

725 mm

Total height

460 mm

Inside diameter

250 mm

Inside length

550 mm

Max. operating pressure

1.8 bar (2,8 ATA)

Test pressure

2.7 bar

Volume

27 litres

Operating temperature

+10°C ... +30°C

Net weight

57kg

CE-marking according to pressure equipment directive 97/23/EC
